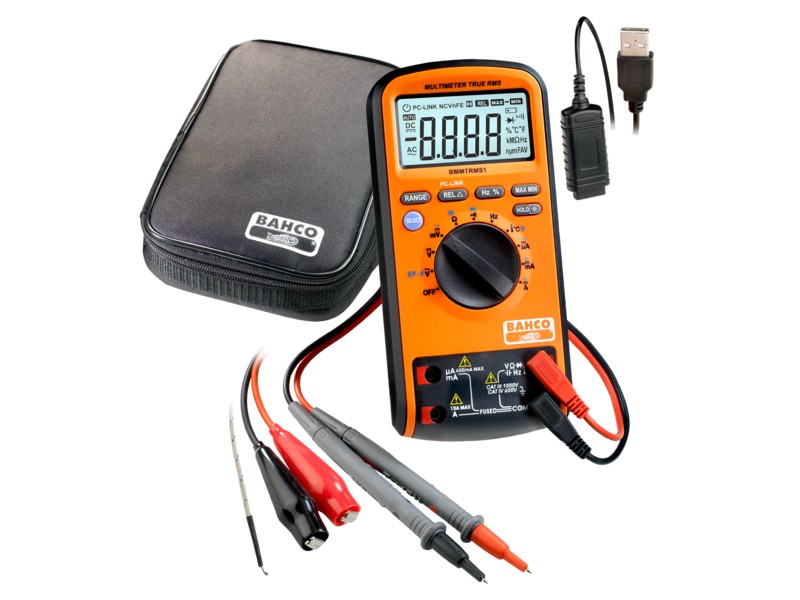

MULTIMETAR DIGITALNI

BAHCO

DC Voltage range : 600mV ±0.5%, 6V/60V/600V ±0,8%, 1000V ±1,0%
AC Voltage range: 600mV/6V/600V ±1,0%, 1000V ±1,5%
DC Current: 600uA/6mA/60mA/600mA6A/10A ±1,5%
CAT Rating: CATIII 1,000V CATIV 600V
Resistance: 600?/6K?/60K?/600K?/6M? ±0,5%, 60M? ±1,5%
Capacitance: 6nF ±3,0%, 600nF/6uF/60uF/300uF ±5,0%
Logic Frequency: 10Hz~1MHz ±(0,1%+3)
Linear Frequency: 10Hz~10KHz ±(0,05%+8)
Duty cycle: 1%~99%
Temperature: -55°c~1000°c ±(2%+2)
Fuses protection: 0,63A/1000Vx1 for µA and mA ranges & 10A/1000Vx1 for 10A range
